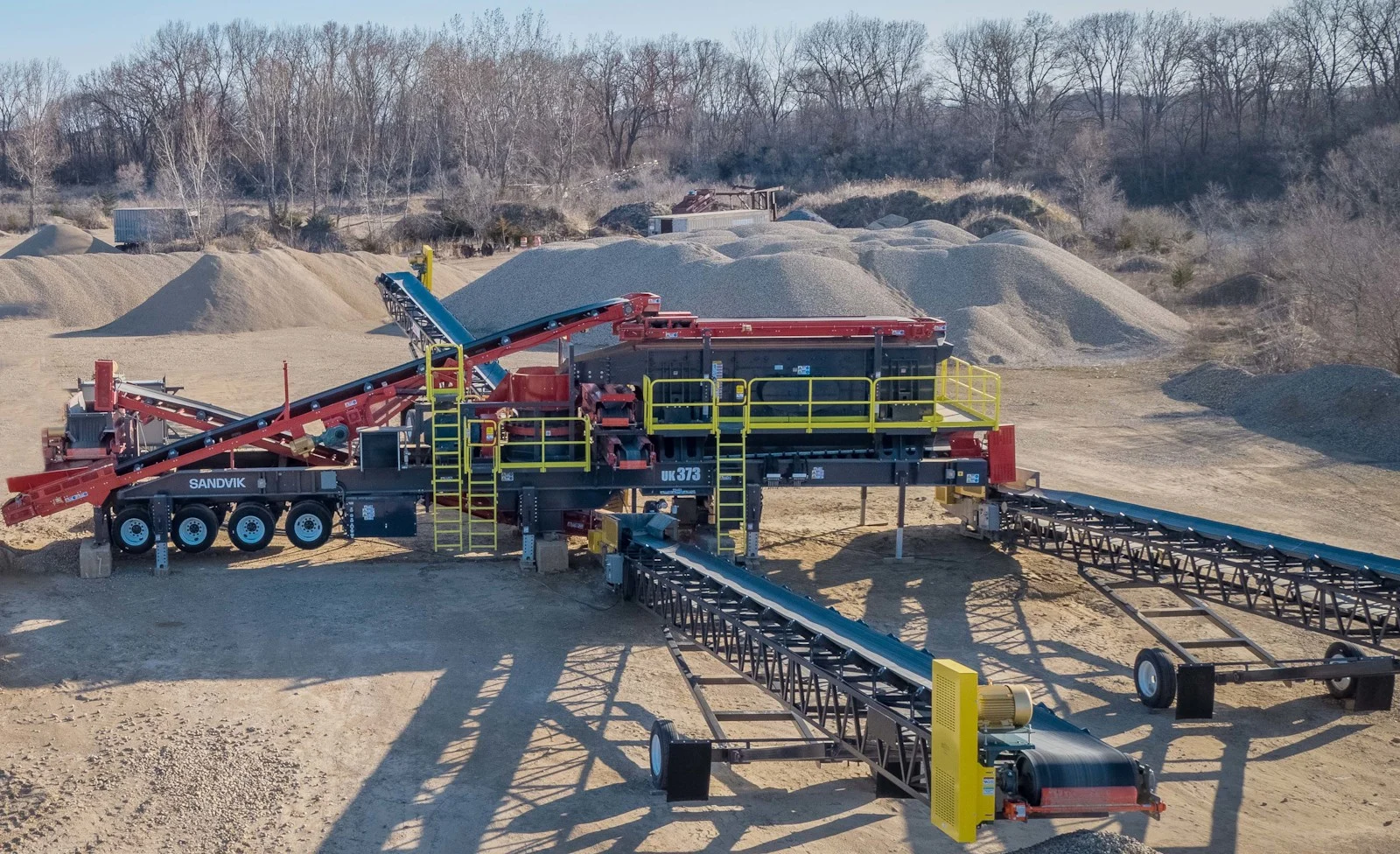

UK373 Cone crusher
Electrically-driven and fully assembled on a quad axle trailer frame, the UK373 offers a closed-circuit solution equipped with the Sandvik CH440 cone crusher and a three deck 6′ x 20′ heavy duty screen to ensure outstanding efficiency, high productivity and reliability.
Equipment: Sandvik CH440 cone, 3 deck 6′ x 20′ horizontal screen
Max. feed size: 9 in. (215 mm )
Capacity: Up to 527 stph (475 mtph)
Enquire about this equipment
Contact us-
Features
- Ideal solution –
for your secondary crushing needs - Integrated ASRi –
for optimal performance and operating efficiency - Highly efficient and accurate screening –
capability for high productivity - Easy setting adjustment –
for simple and efficient operation - Soft starting crusher –
with UL Certified control panel
- Ideal solution –
-
Product Data
Equipment Sandvik CH440 Cone, 3 Deck 6′ x 20′ Horizontal Screen Max. feed size 9 in. (215 mm) Capacity Up to 527 stph (475 mtph) Power 428 hp (314 kW) Transport length 71.1 ft (21.9 m) Transport width 12.6 ft (3.8 m) Transport height 14.5 ft (4.4 m) Weight 153,000 lb (62,500 kg) Please note all weights and dimensions are for standard units only.
-
Additional Product Information
The UK373 benefits from user friendly features such as hydraulically adjustable settings, and a choice of different crushing chambers and throws. This enables fine tuning to match your required specification and maximum output.
All features on this machine have been designed with your needs in mind to give you high productivity and increased operator safety. Safety guards, emergency stop buttons and spacious maintenance platforms provide excellent access for service and maintenance. -
Additional Advantages
- Low cost per tonne –
due to electric operation - Quick to set-up and easy to maintain –
resulting in higher uptime and increased productivity
- Low cost per tonne –
